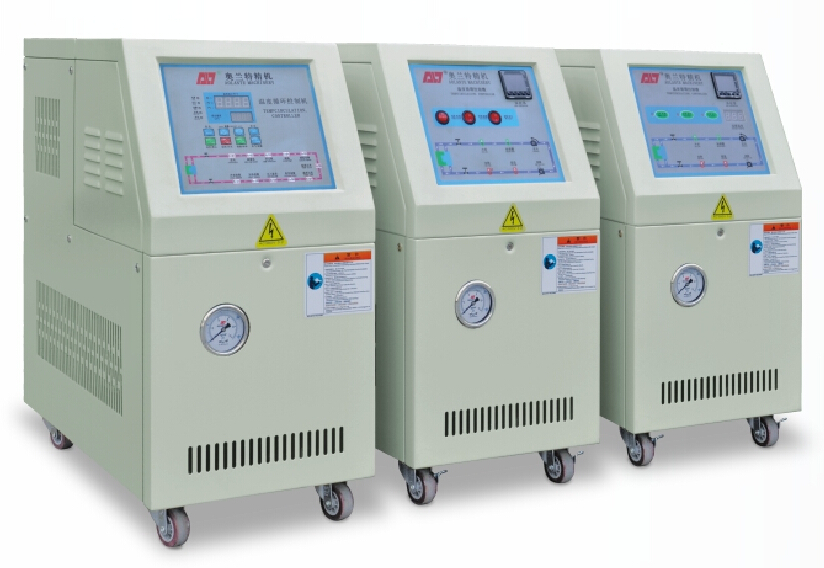

120℃标准水式模温机特点：
管路防爆装置
Explosion-proof equipment for pipelines
深圳水温机具有吹气回水功能
Air blowing and return water function
回水温度显示表
Thermometer for return water
水温机有开机自动排气功能
Automatic air-exhausting function after startup
加热功率切换功能
Switchover of heating power
即时冷却关机功能
Instant cooling return oil shut-down function
隔离式电器控制箱. 延长电器使用年限
Isolated electric box for longer services lives of electric appliances
RS485通讯功能,实现自动化管理.(选购)
RS485 communication function for automated management (optional)
热水BY-PASS泄压回路
BY-PASS pressure release loop for hot water
多点温度控制机组可订作
Customizable multi-point temperature control unit
水泵马力和加热功率可订作
Customizable horsepower and heating power of oil pump
电器采用OMRON. FUJI. TE. LG
Brands OMRON, FUJI, TE and LG for electric appliances
水温机的温度控制范围: 进水温+15℃→120℃
Range of temperature control: +15℃→120℃ for incoming water
304不锈钢一体管路,减少管阻及锈垢
304 stainless steel integrated pipelines for less pipe resistance and rust
控制方式: 采用进口微电脑或(选购)PLC控制
Control mode: imported microcomputer or PLC (optional)
安全保护完善,故障显示, 维修.保养无需专业人员
Perfect safety protection, fault display, easy repair and maintenance even without professionals
标准水温机型号：NS
|
模型Model
|
单位UNIT
|
TWP-05
|
TWA-05M
|
TWP-10
|
TWA-10M
|
TWP-20
|
TWP-30
|
|
温控范围 Control range
|
℃
|
120℃
|
|
温控精度Temp.control accuracy
|
℃
|
PID±1℃
|
|
电源 Power supply
|
|
AC 3φ380V50HZ（or other)或其它
|
|
传热媒体 Heat.transfer medium
|
|
水 Water
|
|
冷却方式 Cooling method
|
|
直接冷却Direct cooling（间接冷却可定制）
|
|
加热能量Heating capacity
|
KW
|
6
|
6
|
9
|
9
|
12
|
12
|
|
泵浦马力（功率）Horsepower of Pump
|
HP/KW
|
0.5/0.37
|
0.5/0.37
|
1/0.75
|
1/0.75
|
2/1.5
|
3/2.2
|
|
泵浦工作流量 Working flow of pump
|
L/MIN
|
98
|
40
|
165
|
60
|
235
|
315
|
|
泵浦工作压力Working pressure of pump
|
KG/C㎡
|
2
|
2.5
|
2.2
|
2.2
|
2.4
|
3.2
|
|
大电力消耗Maximum power consumption
|
KW
|
6.5
|
6.5
|
10
|
10
|
11
|
12
|
|
警报功能 Alarm function
|
|
缺相/缺水/超温/过载/反转
|
|
冷却水配管Cooing water pipework
|
INCH
|
1/2
|
1/2
|
1/2
|
1/2
|
1/2
|
1/2
|
|
循环水配管Circulating water pipework
|
INCH
|
3/8x2
|
3/8x2
|
3/8x4
|
3/8x4
|
3/8x4
|
(3/8x4)x4
|
|
外型尺寸LxWxH
|
MM
|
750x320x70
|
750x320x670
|
780x320x670
|
780x320x670
|
780x320x670
|
780x320x670
|
|
重量 Weighht
|
KG
|
70
|
70
|
80
|
80
|
92
|
95
|
|
以上规格如有变更，恕不另行通知，特殊规格及多机一体机型可定制。Special design upon request
|
